Introducing FAD – Façade Analysis & Design Software

I'm excited to introduce FAD (Facade Analysis & Design) – a structural design software specifically for facade engineering. Built with Python and C++, FAD aims to perform complex Façade design calculations and automate professional reporting.

Features

Current Features Include:

1. Wind load calculation for MWFRS and C&C as per BNBC 2020 and ASCE 7-05 (more codes to be added soon)
2. Structural glass design based on ASTM E1300 (EN/AS codes coming later)
3. Design of framing members (mullions, transoms, steel members)
4. Cleat and screw design for mullion-transom connections
5. Comprehensive fixing design – including pre and post-installed anchors, chemical anchors, base plates, clamps, etc.
6. Fully automated design reports in PDF format using (used Jinja2 and WeasyPrint)

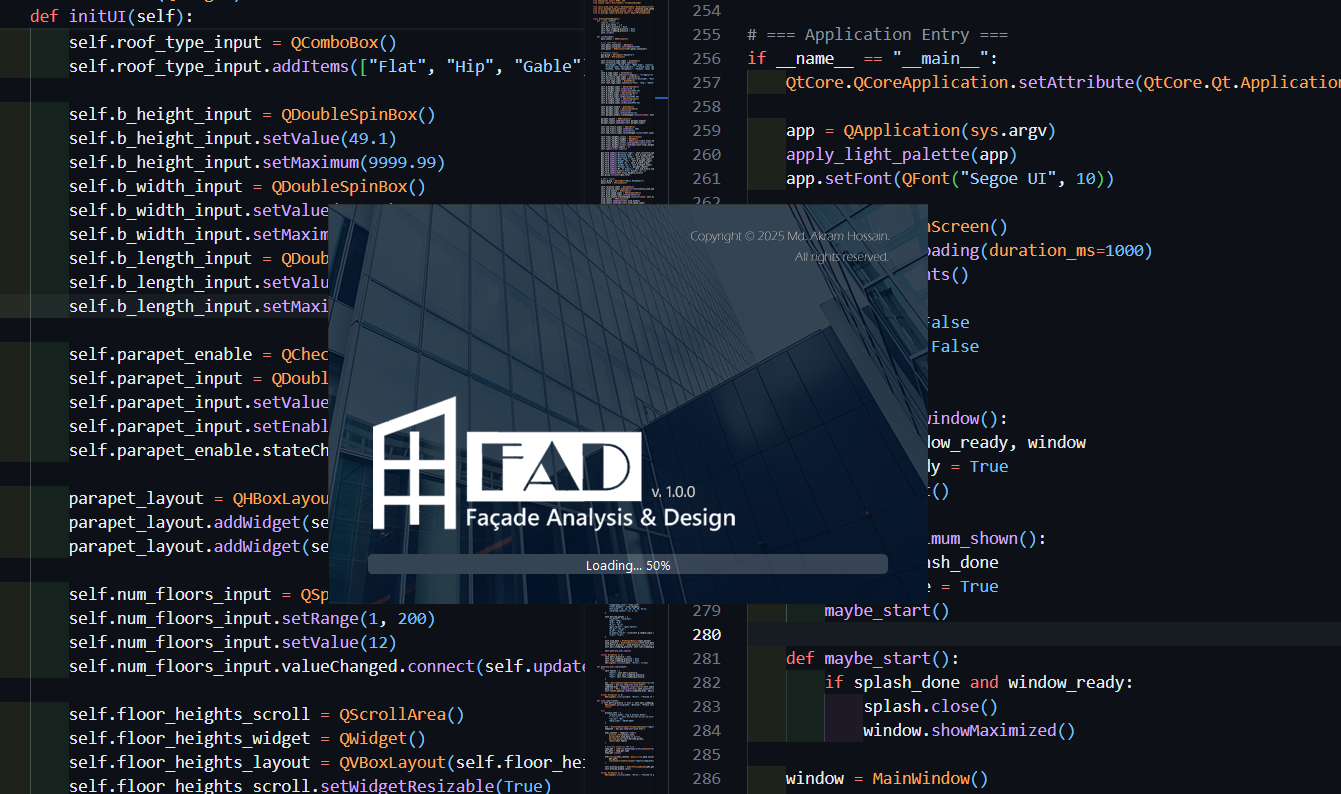

FAD Splash

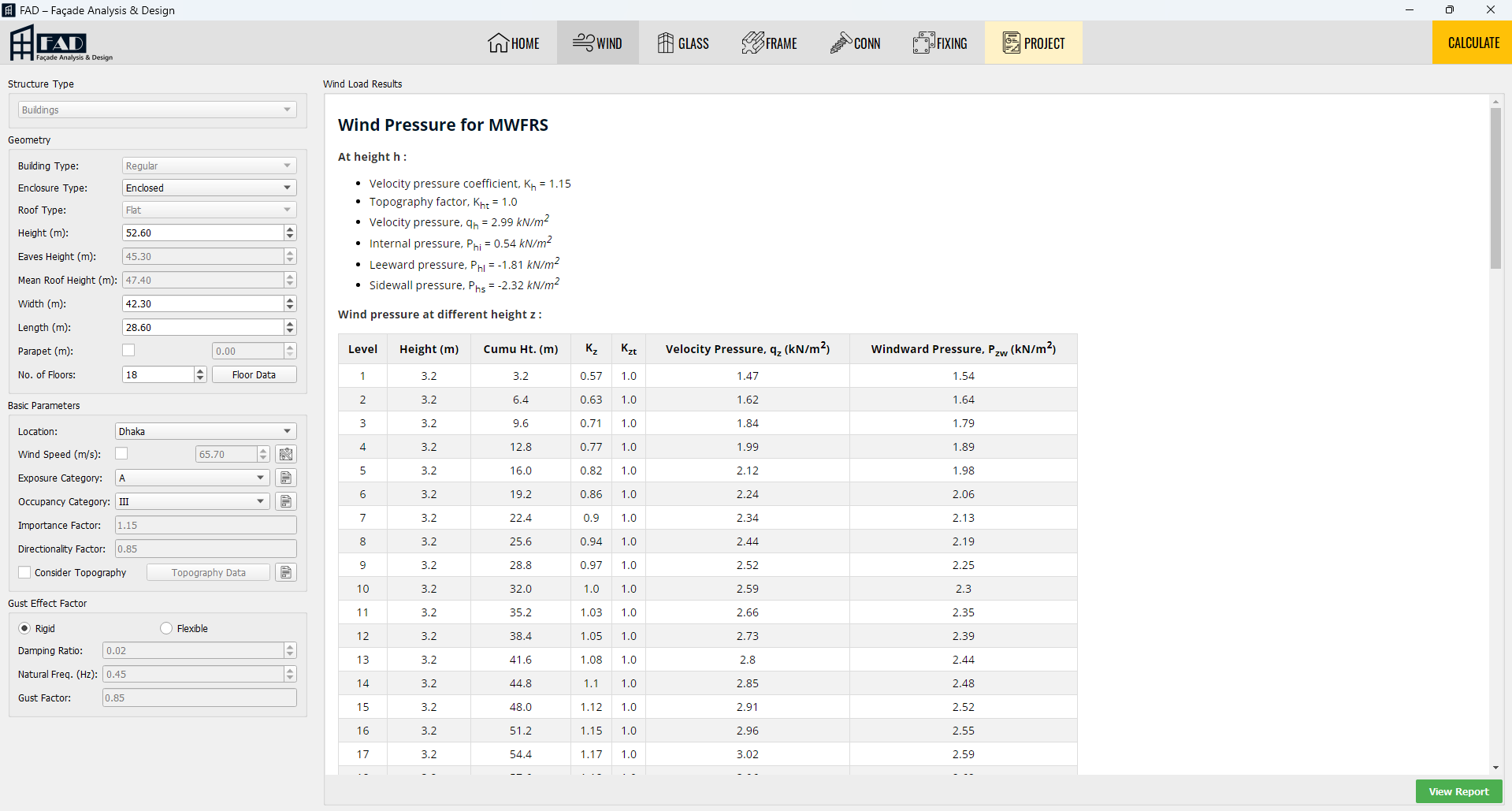

FAD Wind Input and MWFRS Result

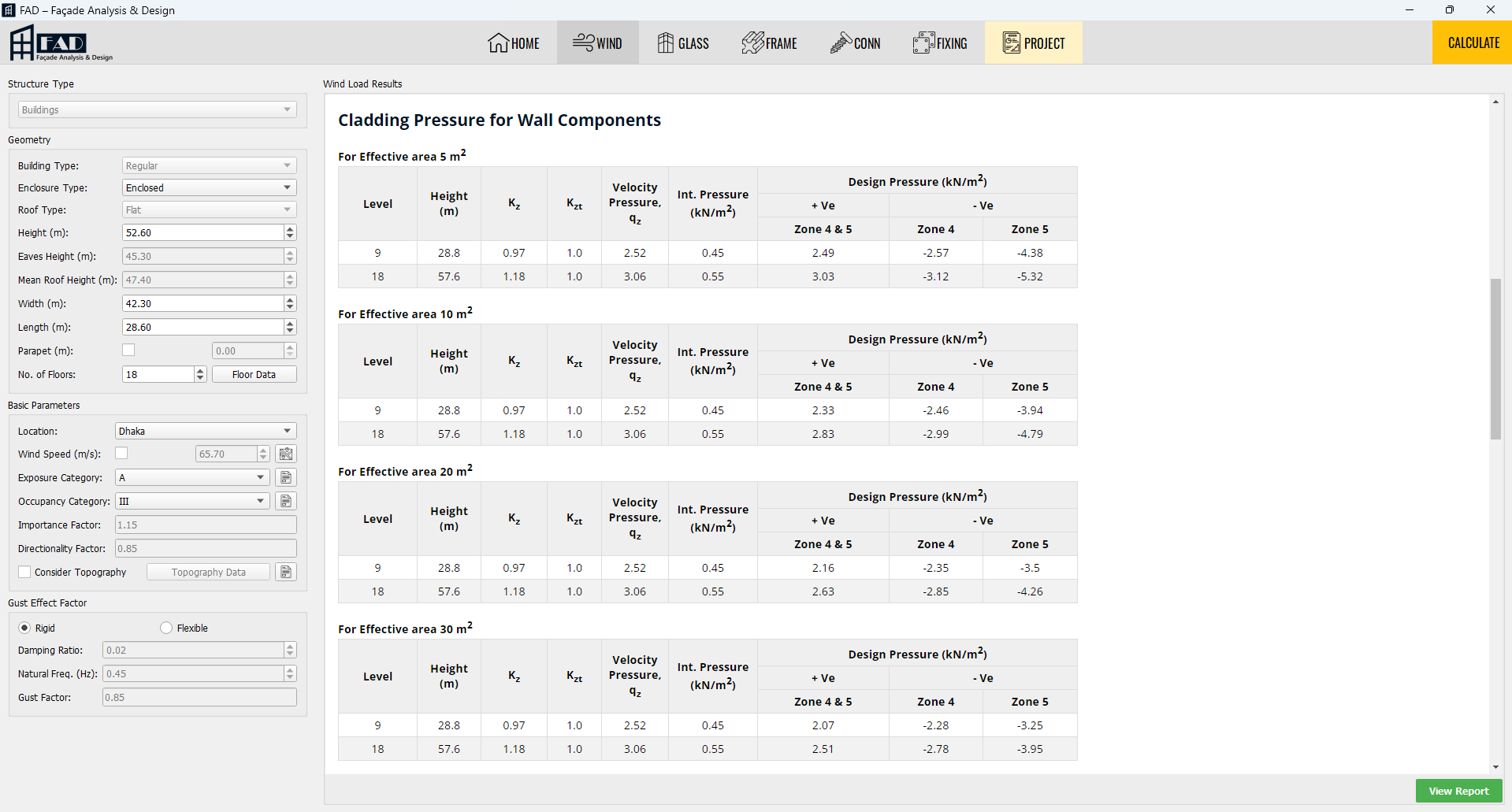

FAD Cladding (C&C) Pressure Result

FAD Wind Load Report Intro

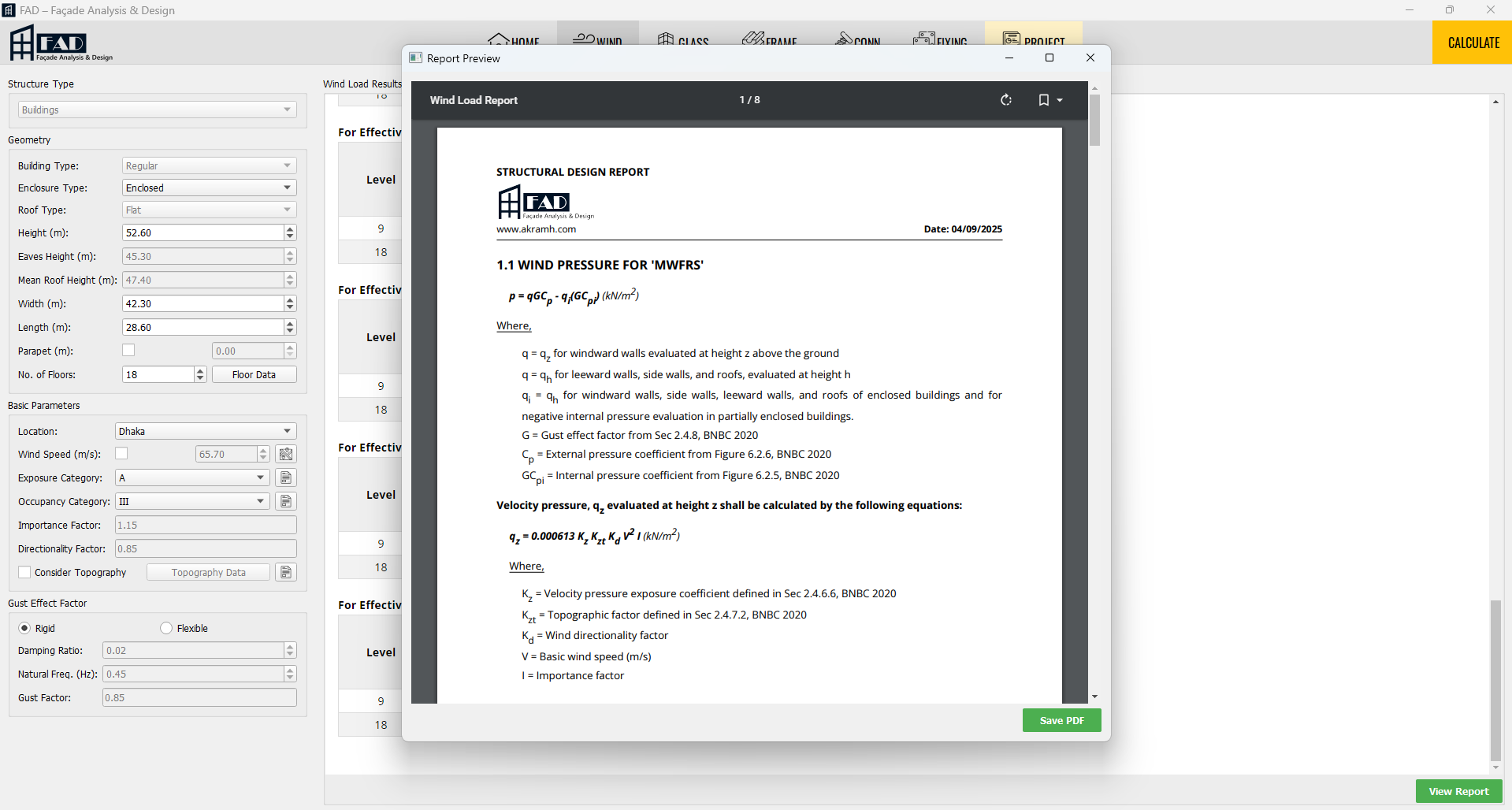

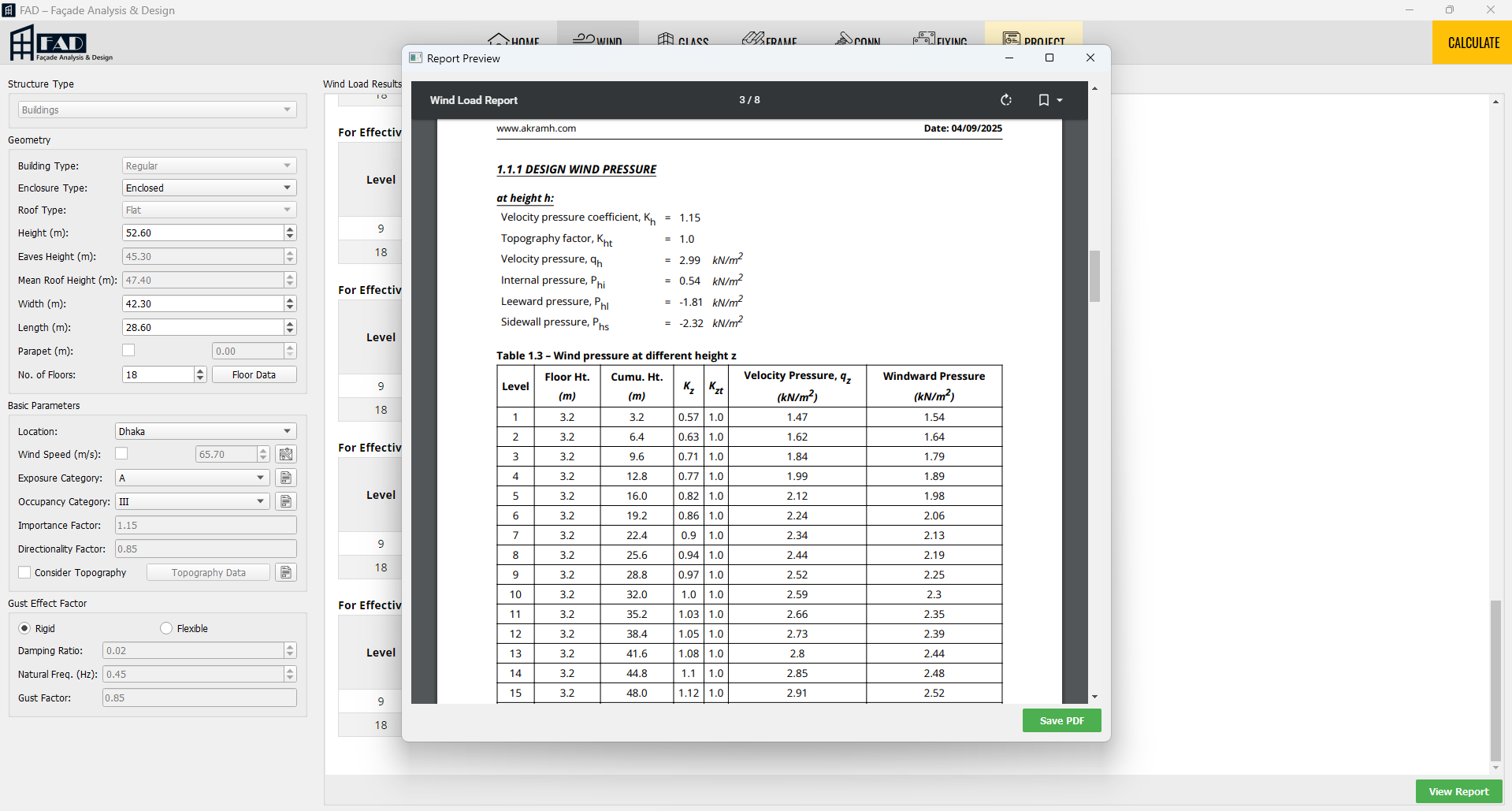

FAD Wind Load Report MWFRS

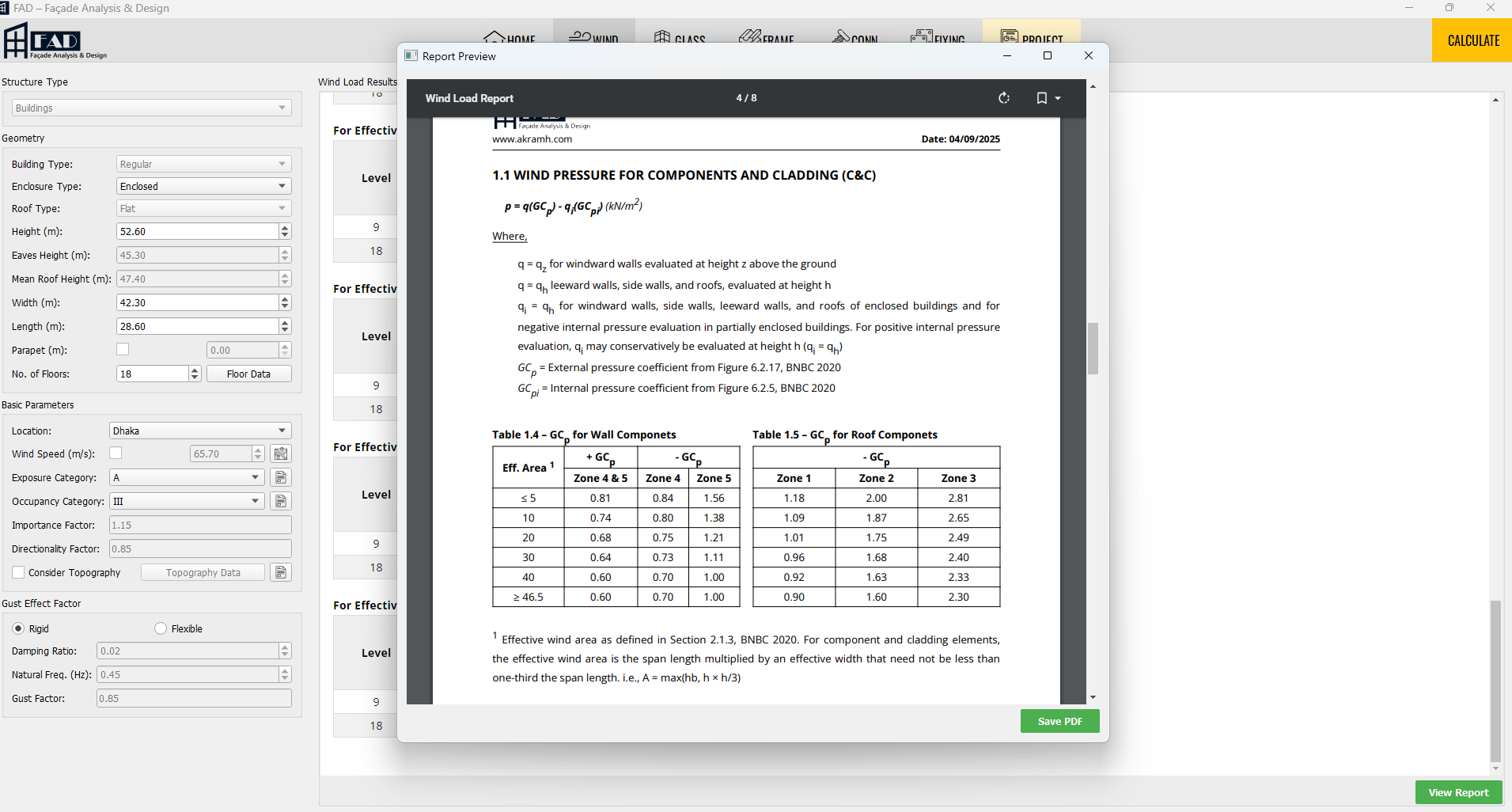

FAD Wind Load Report C&C

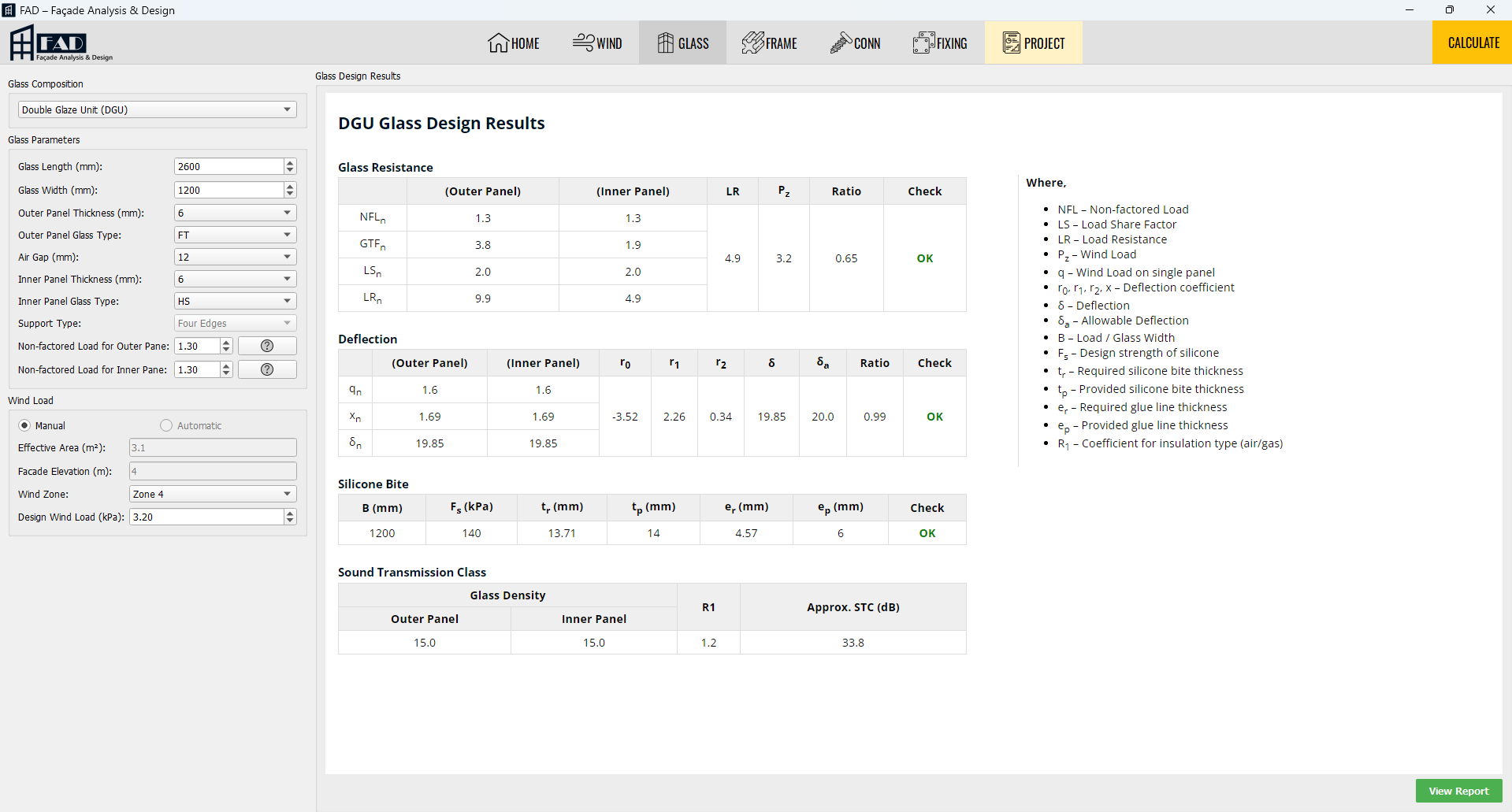

FAD Design of Glass Panel

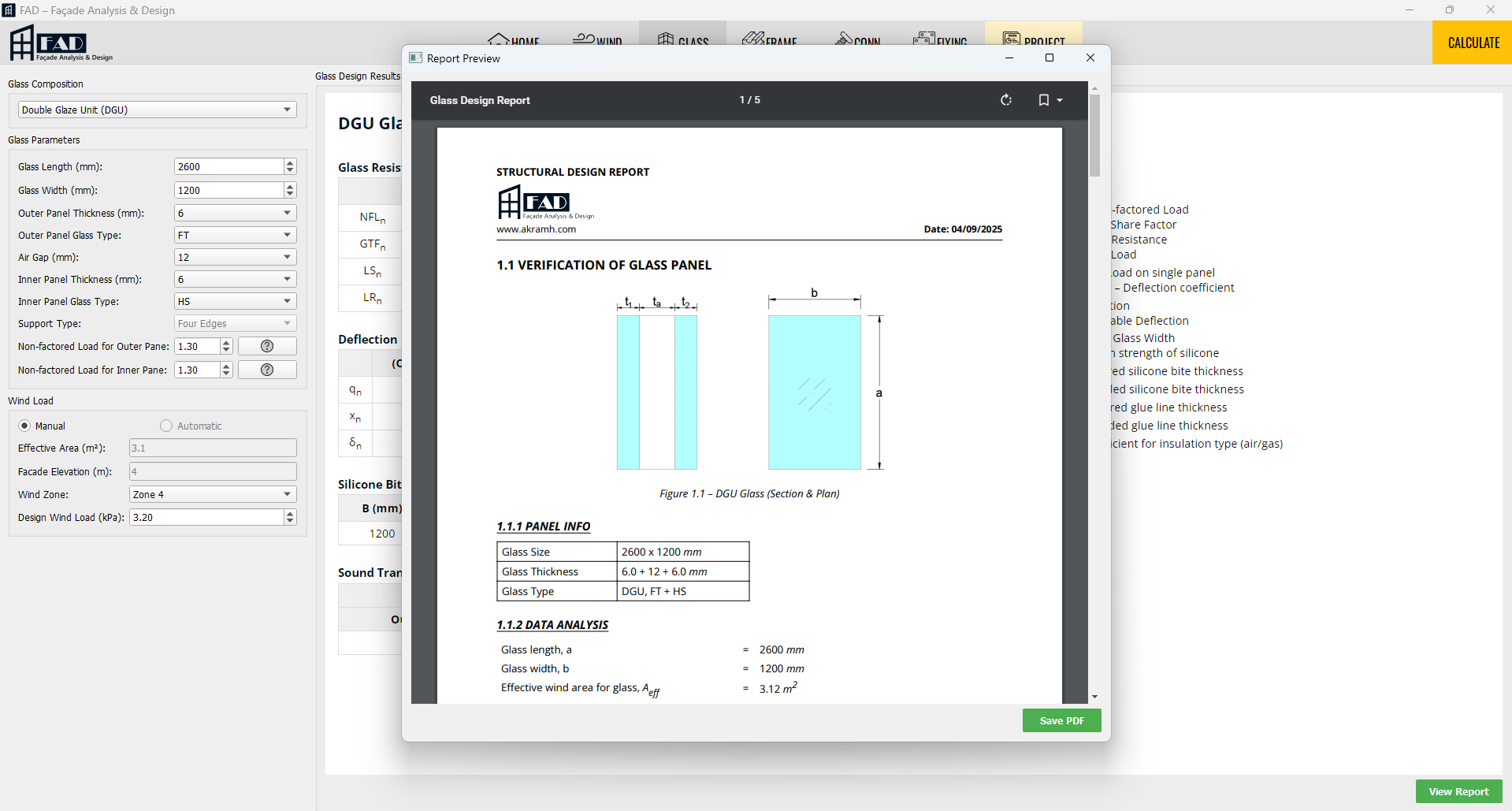

FAD Design of Glass Panel Report

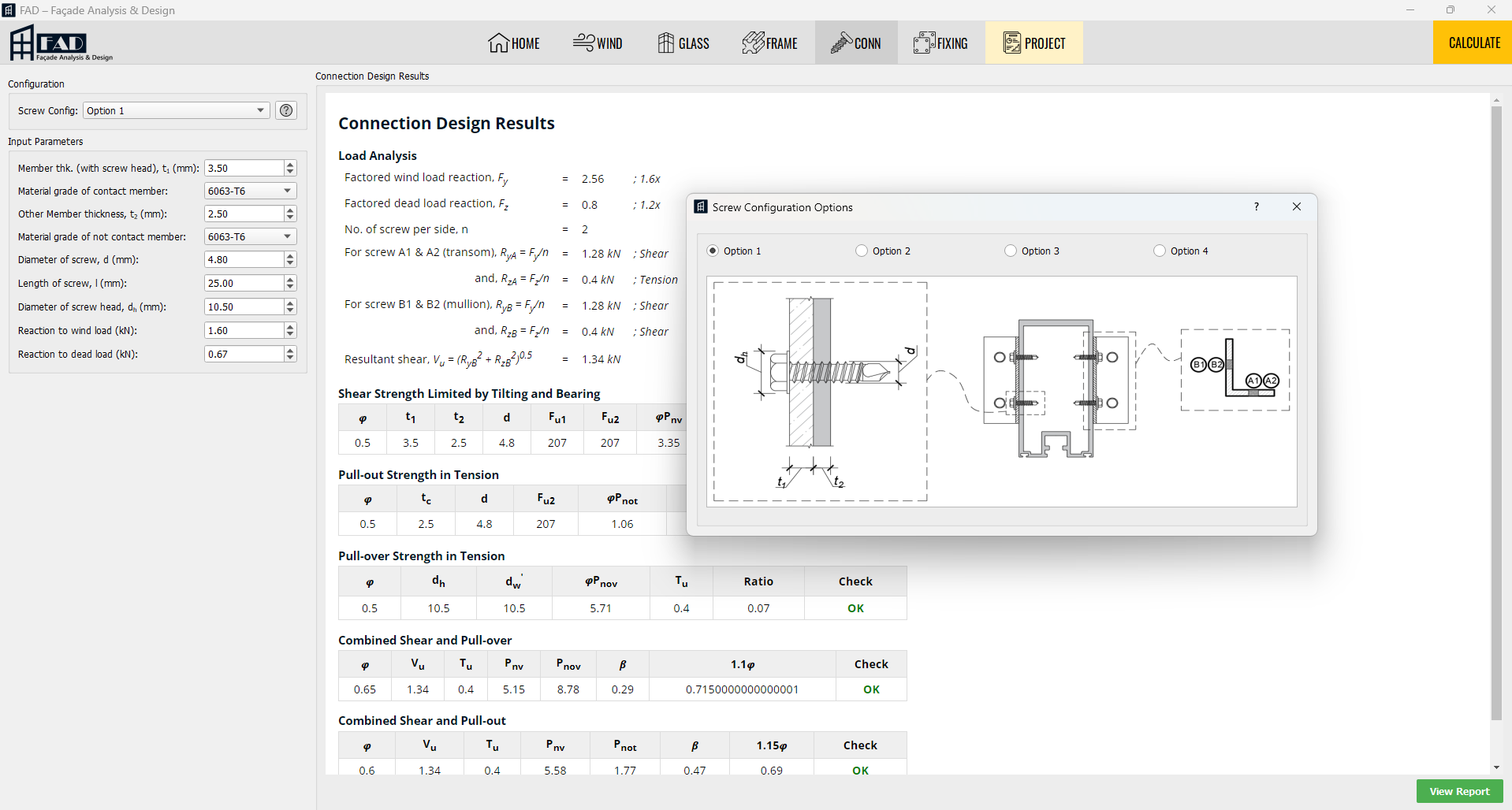

FAD Design of Screw Connection

Future Plans

I have Plans to extend the feature of FAD in coming days, which includes:

1. 3D visualization of wind loads
2. Stress and deflection contours for glass
3. FEM-based analysis for framing members

This is just the beginning. I will keep improving and adding more features to make this tool even more useful.
I'd love to hear your feedback, suggestions, or even feature requests!
